(Archived) Running AddExtractedTextFromEngineeringDrawings

Prior to running Shinydocs MicroStation Add-in, ensure that the following has been completed:

• installation of Shinydocs MicroStation Add-in - (Archived) Shinydocs MicroStation Add-in Installation Manual

• a metadata crawl of the engineering drawings using the Cognitive Toolkit

Shinydocs MicroStation Add-in is query based and can only operate after an initial crawl of the metadata has been completed and an index created.

Open the Command Line Interface for the Cognitive Toolkit.

Run the command: AddExtractedTextFromEngineeringDrawings. To run the command, provide the following parameters to the runscript tool:

OPTION	VALUE	CONDITION
--source-settings <VALUE>	The settings file	Optional *If not included, default: filesystem
--path-to-micro-station <VALUE>	Fully Qualified Path to MicroStation	Optional *If not included, default: C:\Program Files\Bentley\MicroStation CONNECT Edition\MicroStation\microstation.exe
-q|--query <VALUE>	The search query (File or JSON input)	Required
-n|--nodes-per-request <VALUE>	Number of nodes per request. For recommendations on setting this number value, see (Archived) Setting the "--nodes-per-request" option	Optional *If not included default: 1000
--skip-errors	Skip re-processing errors	Optional *If not included default: false
-u|--index-server-url <VALUE>	URL of the index server	Required
-i|--index-name <VALUE>	Name of the index	Required
-t|--threads <VALUE>	Number of parallel processes to start For recommendations on setting this number value, see https://shinydocs.atlassian.net/wiki/spaces/SHINY/pages/2356117520	Optional *If not included default: 1
--force	Forcefully remove / Suppress prompt for confirmation	Optional *If not included default: false
--dry-run	Runs everything but doesn’t send nodes to index The --dry-run option allows you to quickly see how many items will be processed without actually creating the index.	Optional *If not included default: false
-s|--silent	Turn off the progress bar	Optional

Example:

CognitiveToolkit.exe AddExtractedTextFromEngineeringDrawings --query "C:\match_all.json" -u "http://localhost:9200" -i "shiny_index"

The query file is a JSON file that uses the standard ElasticSearch query language. By surrounding a field in curly braces, the AddExtractedTextFromEngineeringDrawings will replace that term with the value of that field instead.

Query Example

{
  "match_all" : {}
}

The AddExtractedTextFromEngineeringDrawings command leverages Bentley MicroStation to allow you to extract data from your engineering files and update the index with that data. Standard fields [text and title block metadata (name value pairs)] can be extracted from:

• .dwg (AutoCAD) engineering drawings

• .dgn (MicroStation) engineering drawings

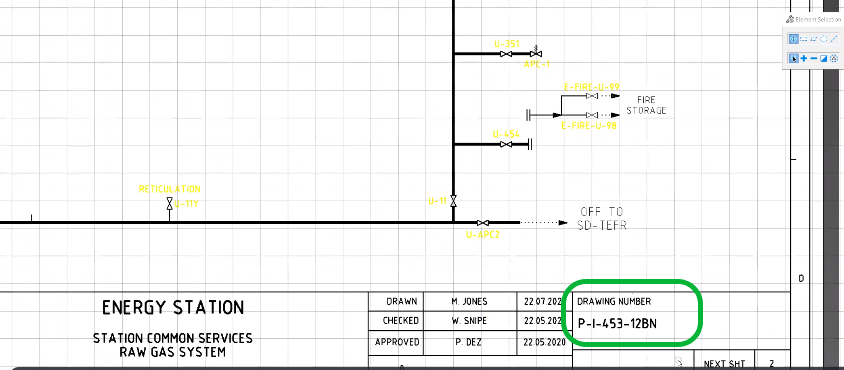

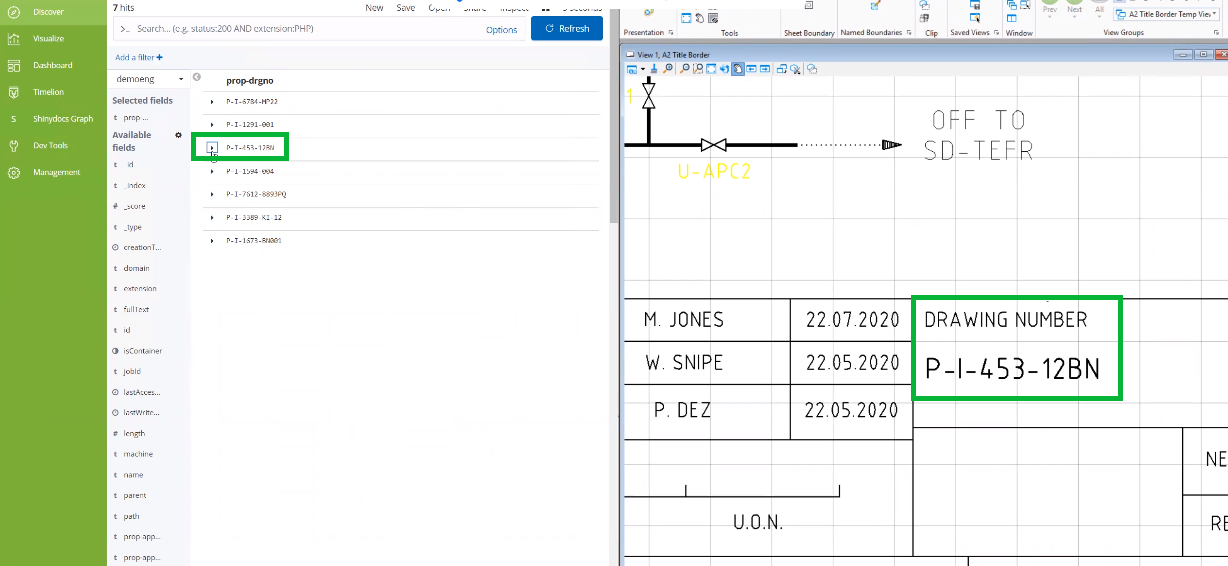

In the following example, the Drawing Number “P-I-453-12BN” was assigned to the prop-drgno field.

All block attributions have a key value pair and will be assigned to the proper field in the index.

Any extractions that are NOT block attributions or are lacking a tag/value pair, will be included in the fullText field of the index.

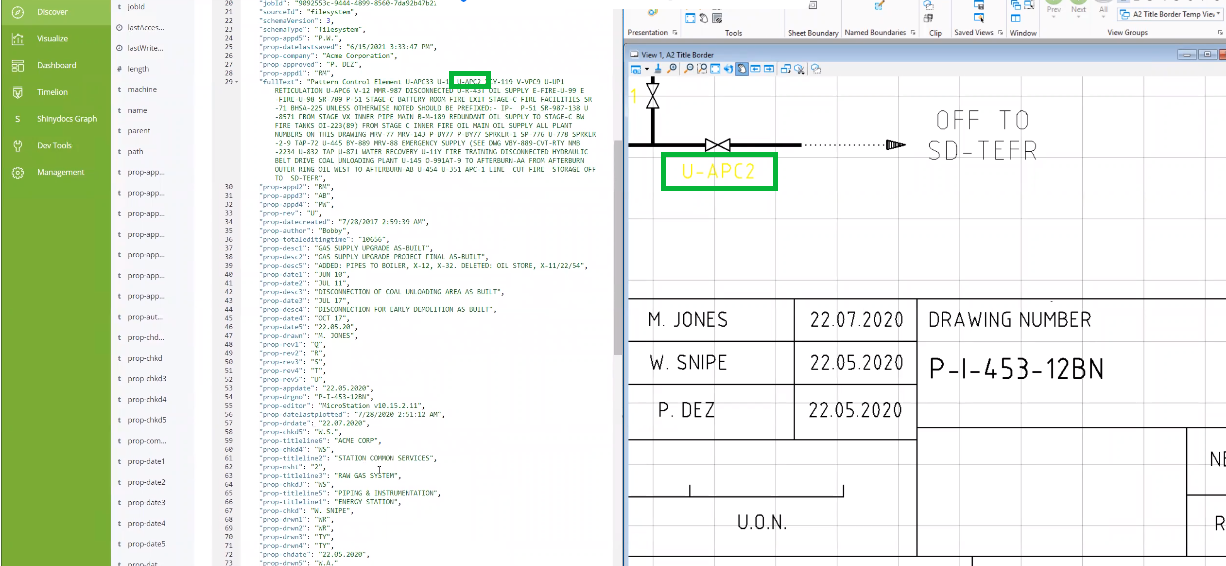

In the example below, the extraction “U-APC2” has been added to the “fullText” field of the index in the left panel.

Congratulations! Now that all of the engineering drawing extractions are in the index, they are fully searchable!
