Shinydocs Pro

Installing Classic Search for Shinydocs Pro

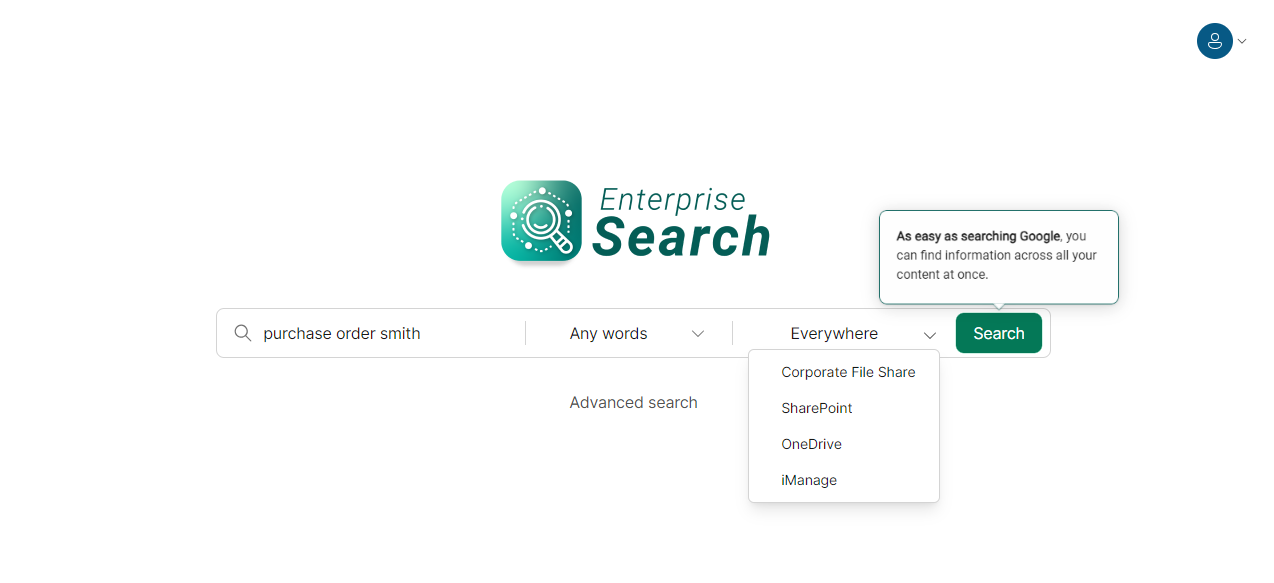

Classic Search. This page is for Classic Search: the Shinydocs Search site that is installed separately from Control Center. Control Center lists it as Enterprise Search, and the site shows that name in its title and logo. Streamlined Search, which is built into Control Center, is now the default. See Getting Started with Search.

Prior to Shinydocs Pro 3.0.1, Search was a separate installation. Since Shinydocs Pro 3.0.1, Search is automatically installed in the same location as Shinydocs Pro.


Empower your staff to find the content they need across all your file shares and network drives.

You can access Search from Shinydocs Pro Control Center by clicking on the Search icon in the navigation menu.

When Shinydocs Search is installed initially, data crawled with Shinydocs Pro is available immediately in Search without permission-checking. This should only be used for testing purposes and be properly configured with permission-checking. Please see our article Limiting Discoverable Items in Classic Search for more details.

Shinydocs Pro Search is an ASP.NET Core application running with Kestrel web-server technology. If you would like to host Search in Microsoft Windows IIS, please follow the information in this guide: Shinydocs Pro Classic Search with IIS.

Search (Formally Shinydocs Search) < Version 3.0.1


Shinydocs Pro versions 3.0.1 and earlier do not automatically install Shinydocs Search. This document describes the steps necessary to install Shinydocs Search manually based on the software downloads you would have received from Shinydocs.

The steps described in this document are not required if you are installing Shinydocs Pro 3.1 or above.

Introduction

Shinydocs Search uses Microsoft® Internet Information Services (IIS) for Windows Server and Windows Authentication with Kerberos to authenticate a user from an internet browser. This guide outlines the Shinydocs Search prerequisites and the steps to installing Shinydocs Search, covering:

  • Setting up the site

  • Setting up Secure Socket Layer (SSL)

  • Configuring Kerberos pass-through

Software

Shinydocs Search is an application that runs on Microsoft Internet Information Services (IIS).

Component

Version

Internet Information Services (IIS)

Windows Server 2019: IIS Version 10.0 or above

Windows Server 2022: IIS Version 10.0 or above

Microsoft .NET Framework

4.7.2 or higher

Shinydocs Enterprise Server

Installation files

Internet Information Services (IIS) Features

Before installing Shinydocs Search, please enable and install the following Windows Roles and Features. These can be enabled in Windows Server Manager > Add Roles and Features Wizard.

Role

Location

http://ASP.NET

Web Server (IIS) > Web Server > Application Development Features

.NET Extensibility 4.x

Web Server (IIS) > Web Server > Application Development Features

Windows Authentication

Web Server (IIS) > Web Server > Security

  1. Extract shinydocs-search-<version>.zip to the directory where you want the application to reside

  2. Ensure permissions are set properly for the extracted folder

    1. Right-click on the extracted folder and go to Properties > Security

    2. Add IIS_IUSRS to the permissions of the folder and give Read access

    3. Ensure IIS_IUSRS or the Application Pool user has Write access to the Web.config file

  3. Create the Shinydocs Search site

    1. Start Internet Information Services (IIS) Manager

    2. In the Connections panel on the left side, expand the tree

    3. Right-click on Sites and select Add Website

    4. In the Add Website window, enter a Site name (for example, Shinydocs Search)

    5. Enter the Physical path to the extracted folder from Step 1 (for example, C:\Shinydocs\ Search\shinydocs-server-1.11.1.0-68)

    6. Set the port you wish to use (44300 is recommended if configuring SSL)

  4. Configure the Shinydocs Search site authentication in IIS

    1. Select the Shinydocs Search site you created in the previous steps

    2. In the middle panel, under the IIS section, double-click Authentication

    3. Enable Anonymous, Windows Authentication and ASP.NET Impersonation

    4. Disable Basic Authentication, and Forms Authentication

  5. Using IIS Manager Restart the Application

Setting Up Secure Sockets Layer (SSL) on the Shinydocs Search Site

  1. Start Internet Information Services (IIS) Manager

  2. Add HTTPS binding to the site

    1. With your site selected in the Connections panel, select Bindings in the Actions panel

    2. In the Site Bindings window, click Add

    3. Select “https” from the Type dropdown

    4. Ensure IP address is “All Unassigned” (for typical deployment)

    5. If your organization has multiple websites running on a single IP address, update the Host name field with the domain or subdomain value

    6. Specify the Port (typically port 44300 for SSL)

    7. Select the ShinydocsPlatformSelfSigned SSL certificate dropdown if you have already used the Platform installer.

    8. Click OK
